OVERVIEW
Simple, fast and reliable!
It is good to know that even when large groups of people come together, the ComBi-line bulk brewers produce large quantities of fresh filter coffee in a short period of time. With Animo’s ComBi-line, the best of the coffee ends up in your cup. ComBi-line is equipped with a fast-filter system. The matching filters containing ground coffee are placed in special synthetic filter holders. Water passes through at exactly the right temperature, to be collected in the container. A ComBi-line coffee machine consists of one brewing unit in combination with one or two beverage containers (5, 10, 20 or 40 litres).
With Animo’s ComBi-line, the best of the coffee ends up in your cup. ComBi-line is equipped with a fast-filter system. The matching filters containing ground coffee are placed in special synthetic filter holders. Water passes through at exactly the right temperature, to be collected in the container. ComBi-line cares for tea lovers as well: it has a special tea filter with filler pipe to make tea as easily as coffee. Without tea
leaves in the tea, or used tea bags to be cleared away. Perfect tea with the same machine.
features
Makes coffee for 25-500 persons
water filters
The best tasting coffee and espresso can only be brewed with fresh, clean water.
Our selection of water filters not only ensures the quality of your drinks, it extends the longevity of your coffee maker or espresso machine by protecting against scale and mineral buildup.
Why Choose Animo?
Founded in 1950 in Amersfoort (the Netherlands) the Animo expanded very quickly and soon opened a second production plant in Assen. In 1996 the plant in Assen became the head office. In 1991 and 1992 Animo opened own sales offices with warehouse in Belgium, Germany and France. The unique strength of Animo lies in its versatility, offering self-service or automatic coffee machines, plus the ability to provide a machine for any situation. The Animo range covers all types of coffee and tea machines. They make premium-quality coffee machines and equipment that are user-friendly, durable and convenient to maintain. Their machines deliver a wide range of fresh, hot beverages time after time. Everything from freshly ground espresso, cappuccino or latte macchiato to tea, hot chocolate and instant soup. They been doing business for over 60 years in more than 75 countries worldwide. Because good coffee takes a good machine. And a good machine takes experience, expertise and dedication.
documents
Brochure
Operational Manual
Spare Parts
gallery

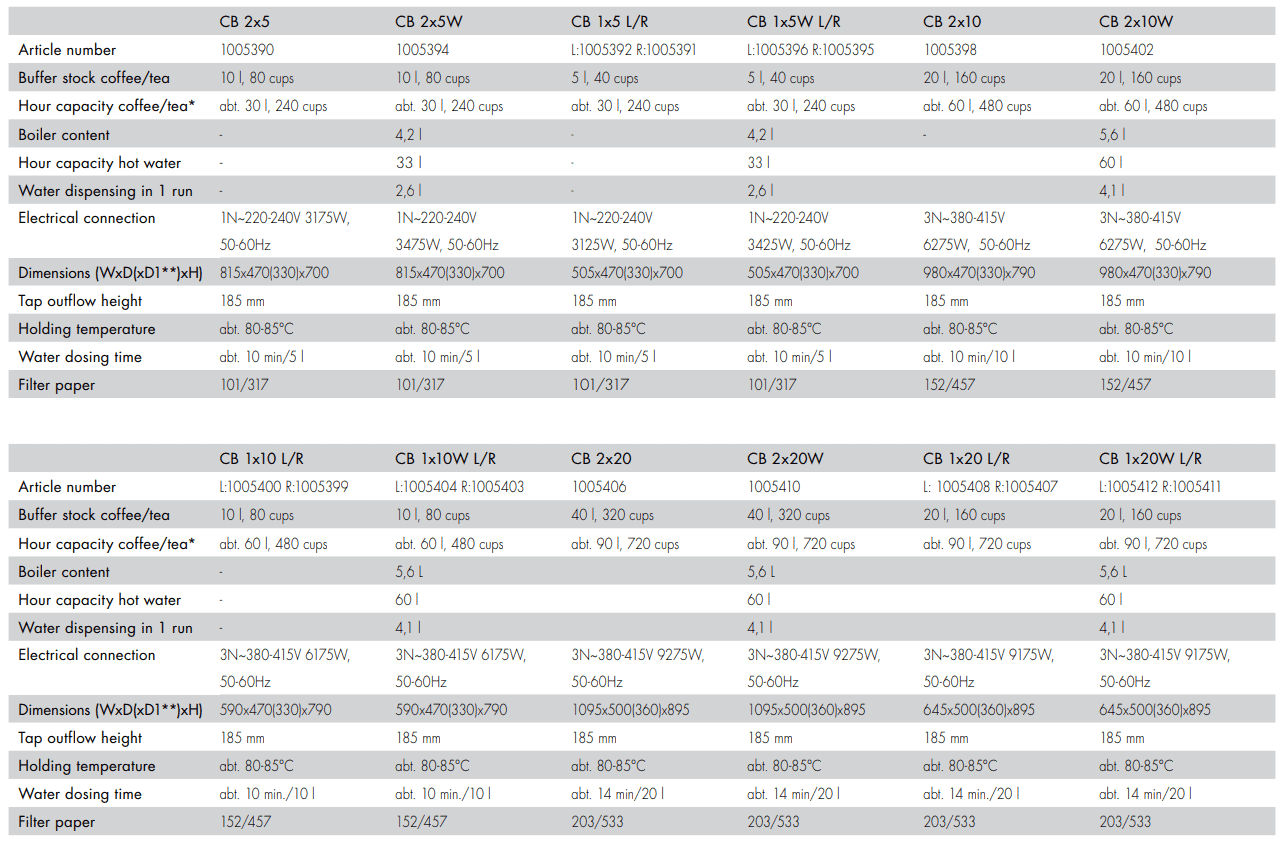

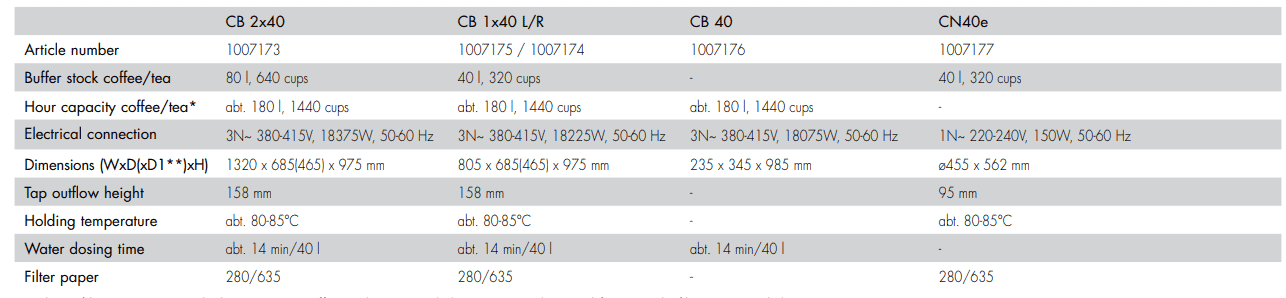

CONFIGURATION, TECHNICAL & EXTRAS
BAM-CB1.5 (Right / Left) (No Hot Water)
User friendly operation
Prewet and pulse brew
Insulated stainless steel boiler
Energy saving mode
Plug and play
Capacitive touch user interface
Double walled systems
Coffee dosing guidelines
LED Lighting in electrical containers
No-drip Tap
5L Removable Container (30L per hour capacity)
W: 505 D: 470 H: 700
Single Phase 230V
BAM-CB1.10 (Right / Left) (No Hot Water)
All above specifications
10L Removable Container (60L per hour capacity)
W: 590 D: 470 H: 790
Three Phase 400V
BAM-CB1.20 (Right / Left) (No Hot Water)
All above specifications
20L Removable Container (90L per hour capacity)
W: 645 D: 500 H: 895
Three Phase 400V
BAM-CB2.5 (No Hot Water)
All above specifications
2 x 5L Removable Containers (30L per hour capacity)
W: 815 D: 470 H: 700
Single Phase 230V
BAM-CB2.10 (No Hot Water)
All above specifications
2 x 10L Removable Containers (60L per hour capacity)
W: 980 D: 470 H: 790
Three Phase 400V
BAM-CB2.20 (No Hot Water)
All above specifications
2 x 20L Removable Containers (90L per hour capacity)
W: 1095 D: 500 H: 895
Three Phase 400V
BAM-CB1.5W (Right / Left) (Hot Water)
User friendly operation
Prewet and pulse brew
Insulated stainless steel boiler
Energy saving mode
Plug and play
Capacitive touch user interface
Double walled systems
Coffee dosing guidelines
LED Lighting in electrical containers
No-drip Tap located at front of machine
5L Removable Container (30L coffee/33L hot water per hour capacity)
W: 505 D: 470 H: 700
Single Phase 230V
BAM-CB1.10W (Right / Left) (Hot Water)
All above specifications
10L Removable Container (60L coffee/hot water per hour capacity)
W: 590 D: 470 H: 790
Three Phase 400V
BAM-CB1.20W (Right / Left) (Hot Water)
All above specifications
20L Removable Container (90L coffee/60L hot water per hour capacity)
W: 645 D: 500 H: 895
Three Phase 400V
BAM-CB2.5W (Hot Water)
All above specifications
2 x 5L Removable Containers (30L coffee/33L hot water per hour capacity)
W: 815 D: 470 H: 700
Single Phase 230V
BAM-CB2.10W (Hot Water)
All above specifications
2 x 10L Removable Containers (60L coffee/hot water per hour capacity)
W: 980 D: 470 H: 790
Three Phase 400V
BAM-CB2.20W (Hot Water)
All above specifications
2 x 20L Removable Containers (90L coffee/60L hot water per hour capacity)
W: 1095 D: 500 H: 895
Three Phase 400V
BAM-CB5 (No Hot Water)
Wall Mounted solution
Energy saving mode
Plug and play
Capacitive touch user interface
LED Lighting in electrical containers
5L Removable Container (30L per hour capacity)
W: 235 D: 375 H: 725
Single Phase 230V
BAM-CB10 (No Hot Water)
All above specifications
10L Removable Container (60L per hour capacity)
W: 235 D: 375 H: 820
Three Phase 400V
BAM-CB20 (No Hot Water)
All above specifications
20L Removable Container (90L per hour capacity)
W: 235 D: 375 H: 920
Three Phase 400V
BAM-CB5W (Hot Water)
Wall Mounted Solution
Energy saving mode
Plug and play
Capacitive touch user interface
LED Lighting in electrical containers
2 x 5L Removable Containers (30L coffee/33L hot water per hour capacity)
W: 235 D: 490 H: 725
Single Phase 230V
BAM-CB10W (Hot Water)
All above specifications
2 x 10L Removable Containers (60L coffee/hot water per hour capacity)
W: 235 D: 490 H: 820
Three Phase 400V
BAM-CB20W (Hot Water)
All above specifications
2 x 20L Removable Containers (90L coffee/60L hot water per hour capacity)
W: 235 D: 490 H: 920
Three Phase 400V
Electrically Heated Container CN5e
Electrically Heated Container CN10e
Electrically Heated Container CN20e
ComBi filter CN5e
ComBi filter CN10e
ComBi filter CN20e
Filter paper (500 Sheets) for ComBi filter CN5e
Filter paper (500 Sheets) for ComBi filter CN10e
Filter paper (500 Sheets) for ComBi filter CN20e
Tea filter with disk for container CN5e
Tea filter with disk for container CN10e
Tea filter with disk for container CN20e
Serving Trolley Type “S”
Suitable for 1 Container (CNe 5 – 40 Litre)
Supplied with centring shoulders and drip tray
W: 595 D: 795 H: 850 (without container)
Draw an additional ($260) not included*
